AX7905

3-Terminal Fixed Negative Voltage Regulator

AX7905 Features

* Output Voltage: -5 and -12V Output current up to 1A No external components required Internal thermal overload protection Internal short-circuit current limiting Output transistor safe-area compensation Output voltage offered in 4% tolerance  PIN ASSIGNMENT The packages of AX7905/12 are TO220-3L an

AX7905 General Description

The AX7905/12 series of fixed output negative voltage regulators are intended as complements to the popular TS7800 series device. These negative regulators are available in the same seven-voltage options as the AX7905/12 devices. In addition, one extra voltage option commonly employed in MECL system.

AX7905 Datasheet (346.69 KB)

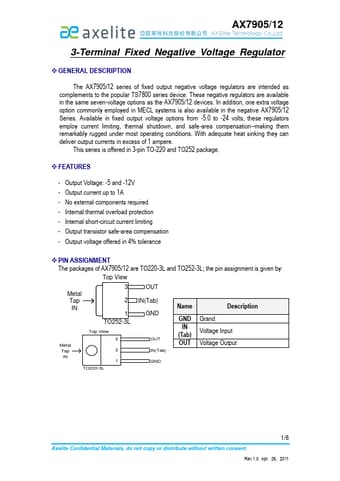

Preview of AX7905 PDF

Datasheet Details

Part number:

AX7905

Manufacturer:

AXElite

File Size:

346.69 KB

Description:

3-terminal fixed negative voltage regulator.
