AX78H05

3-Terminal 200mA Positive Voltage Regulator

AX78H05 Features

* Output Voltage : 5V Output current up to 200mA No external components required Internal thermal overload protection Internal short-circuit current limiting Output transistor safe-area compensation Output voltage offered in 4% tolerance  PIN ASSIGNMENT The package of AX78H05 is SOT89-3L; the pin as

AX78H05 Datasheet (172.24 KB)

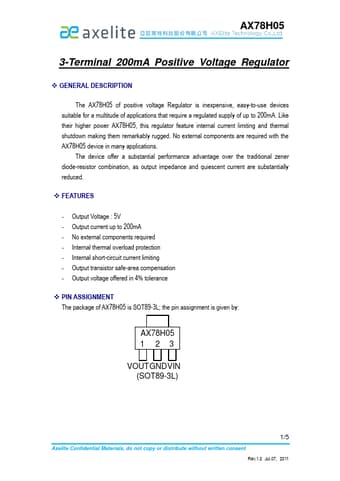

Preview of AX78H05 PDF

Datasheet Details

Part number:

AX78H05

Manufacturer:

AXElite

File Size:

172.24 KB

Description:

3-terminal 200ma positive voltage regulator.
