AK5362048BW

2097152 Word by 32 Bit CMOS Dynamic Random Access Memory

AK5362048BW Features

* 2,097,152 x 36 bit organization

* 72 pad Single In-Line Module

* CAS-before-RAS, RAS-only or hidden refresh

* Operating free air temperature 0oC to 70oC

* Single 5 Volt Power Supply

* 1024 Refresh Cycles, 16 mSEC

* Available in Fast Page Mode and EDO

* Power 2.125

AK5362048BW General Description

The Accutek AK5362048BW high density memory module is a CMOS dynamic RAM organized in 2048K x 36 bit words. The module consists of four standard 1 Meg x 16 bits DRAMs and two 1 Meg x 4 bit Quad CAS DRAM in plastic SOJ packages. The assembly has 3 DRAMs mounted on each side of a printed circuit board.

AK5362048BW Datasheet (156.53 KB)

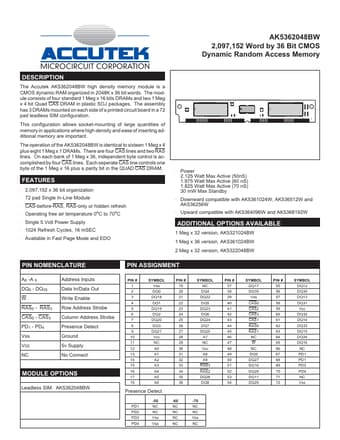

Preview of AK5362048BW PDF

Datasheet Details

Part number:

AK5362048BW

Manufacturer:

ACCUTEK

File Size:

156.53 KB

Description:

2097152 word by 32 bit cmos dynamic random access memory.
