AK536512W Datasheet - ACCUTEK

AK536512W - 524288 Word by 32 Bit CMOS Dynamic Random Access Memory

The Accutek AK536512W high density memory module is a CMOS dynamic RAM organized in 512K x 36 bit words.

The module consists of sixteen standard 256K x 4 DRAMs in plastic SOJ packages and eight 256K x 1 DRAMs in PLCC packages.

The assembly has 12 drams mounted on each side of a printed circuit board

AK536512W Features

* 524,288 x 36 bit organization 72 pad Single In-Line Module Multiple CAS and RAS lines allow x18 or x36 bit widths CAS-before-RAS refresh Operating free air temperature 0oC to 70oC

* Single 5 Volt Power Supply

* Power 5.41 Watt Max Active (70nS) 4.75 Watt Max Ac

AK536512W-ACCUTEK.pdf

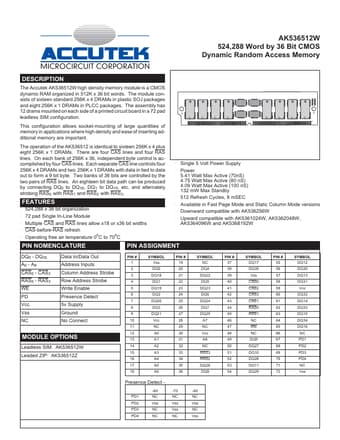

Preview of AK536512W PDF
AK536512W Datasheet Preview Page 2

Datasheet Details

Part number:

AK536512W

Manufacturer:

ACCUTEK

File Size:

188.81 KB

Description:

524288 word by 32 bit cmos dynamic random access memory.
