ADS20A60 - SCRs

📥 Download Datasheet

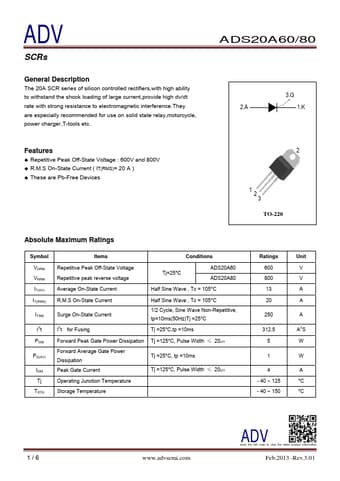

ADS20A60 Datasheet Preview — Preview of ADS20A60 PDF

Datasheet Details

Part number: ADS20A60
Manufacturer: ADV
File Size: 294.71 KB
Datasheet: ADS20A60-ADV.pdf
Description: SCRs

ADS20A60 Product details

Description

The 20A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc..

Features

Repetitive Peak Off-State Voltage : 600V and 800V.
R. M. S On-State Current ( IT(RMS)= 20 A ).
These are Pb-Free Devices 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage Conditions Tj=25°C ADS20A60 ADS20A80 Average On-State Current Half Sine Wave , Tc = 105°C R. M. S On-State Current Surge On-State Current I2t for Fusing Half Sine Wave , Tc = 105°C.
