ADS20A60G

SCRs

ADS20A60G Features

* Repetitive Peak Off-State Voltage : 600V and 800V

* R.M.S On-State Current ( IT(RMS)= 20A )

* These are Pb-Free Devices 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak

ADS20A60G General Description

The 20A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc. 3..

ADS20A60G Datasheet (293.65 KB)

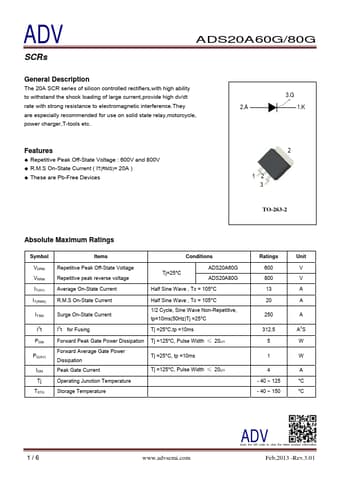

Preview of ADS20A60G PDF

Datasheet Details

Part number:

ADS20A60G

Manufacturer:

ADV

File Size:

293.65 KB

Description:

Scrs.
