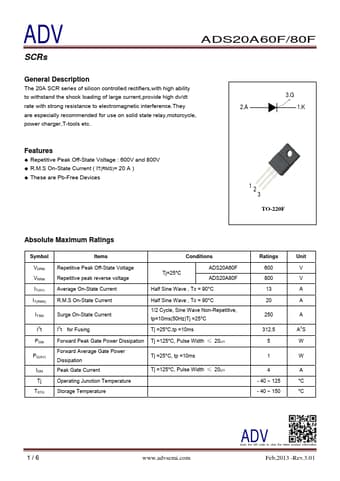

Description
The 20A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc..
Features
- Repetitive Peak Off-State Voltage : 600V and 800V.
- R. M. S On-State Current ( IT(RMS)= 20 A ).
- These are Pb-Free Devices
1 23 TO-220F
Absolute Maximum Ratings
Symbol VDRM VRRM IT(AV) IT(RMS)
ITSM
I2t PGM
PG(AV)
IGM Tj TSTG
Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage
Conditions
Tj=25°C
ADS20A60F ADS20A80F
Average On-State Current
Half Sine Wave , Tc = 90°C
R. M. S On-State Current Surge On-State Current I2t for Fusing
Half Sine Wave , Tc = 90°C 1.
