ADS20A80, ADS20A60, SCRs

ADV ADS20A60/80 SCRs General .
The 20A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with str.

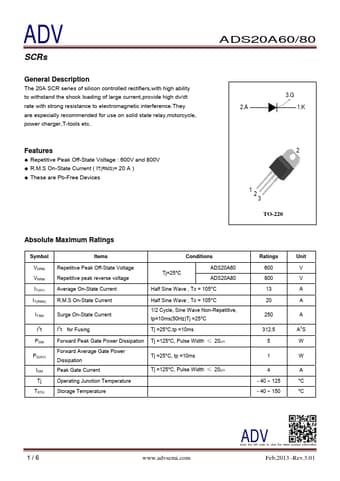

datasheet Preview Page 1 from Datasheet4u.com

ADS20A60-ADV.pdf

ADS20A80 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS20A80, ADS20A60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS20A80, ADS20A60

Manufacturer:

ADV

File Size:

294.71 KB

Description:

SCRs

Note:

This datasheet PDF includes multiple part numbers: ADS20A80, ADS20A60.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage : 600V and 800V
* R. M. S On-State Current ( IT(RMS)= 20 A )
* These are Pb-Free Devices 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak re
