ADS25C60G Datasheet - ADV

ADS25C60G - 3 Quadrants Triacs

High current density due to mesa technology .the ADS25C triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

washing machines and vacuum cleaners,Rectifier-fed DC in

ADS25C60G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Re

ADS25C60G-ADV.pdf

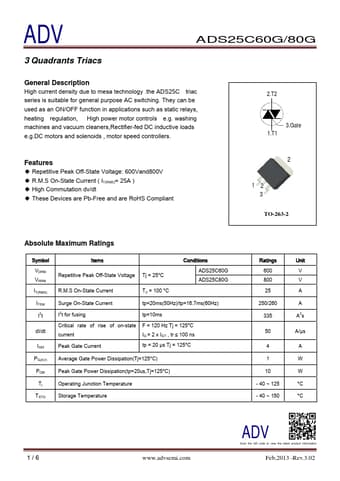

Preview of ADS25C60G PDF
ADS25C60G Datasheet Preview Page 2 ADS25C60G Datasheet Preview Page 3

Datasheet Details

Part number:

ADS25C60G

Manufacturer:

ADV

File Size:

264.49 KB

Description:

3 quadrants triacs.
