ADS25C60H

3 Quadrants Triacs

ADS25C60H Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj T

ADS25C60H General Description

High current density due to mesa technology .the ADS25C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25C60H Datasheet (261.64 KB)

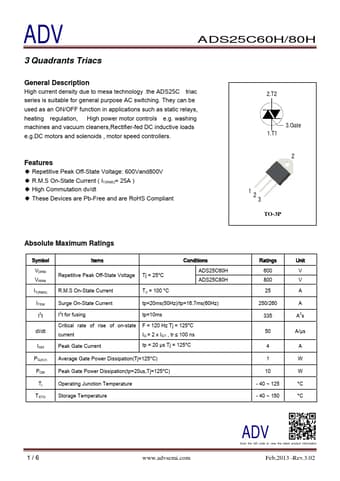

Preview of ADS25C60H PDF

Datasheet Details

Part number:

ADS25C60H

Manufacturer:

ADV

File Size:

261.64 KB

Description:

3 quadrants triacs.
