ADS25C80F

3 Quadrants Triacs

ADS25C80F Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repet

ADS25C80F General Description

High current density due to mesa technology .the ADS25C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25C80F Datasheet (261.98 KB)

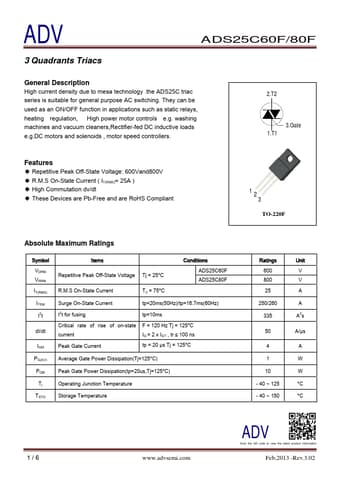

Preview of ADS25C80F PDF

Datasheet Details

Part number:

ADS25C80F

Manufacturer:

ADV

File Size:

261.98 KB

Description:

3 quadrants triacs.
