ADS25C80H, ADS25C60H Datasheet - ADV

ADS25C80H, ADS25C60H, 3 Quadrants Triacs

ADV ADS25C60H/80H 3 Quadrants Triacs General .
High current density due to mesa technology .

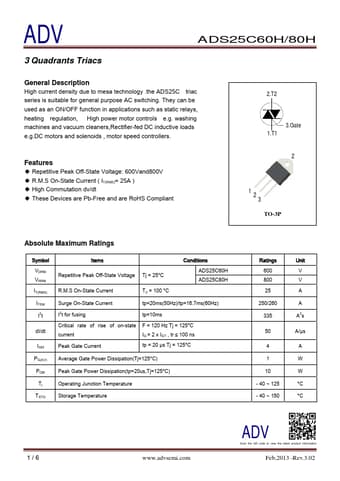

ADS25C60H-ADV.pdf

ADS25C80H Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS25C80H, ADS25C60H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS25C80H, ADS25C60H

Manufacturer:

ADV

File Size:

261.64 KB

Description:

3 Quadrants Triacs

Note:

This datasheet PDF includes multiple part numbers: ADS25C80H, ADS25C60H.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage: 600Vand800V
* R. M. S On-State Current ( IT(RMS)= 25A )
* High Commutation dv/dt
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj T
