ADS25C80G

3 Quadrants Triacs

ADS25C80G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Re

ADS25C80G General Description

High current density due to mesa technology .the ADS25C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25C80G Datasheet (264.49 KB)

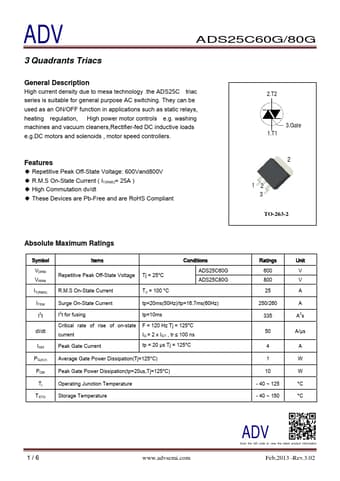

Preview of ADS25C80G PDF

Datasheet Details

Part number:

ADS25C80G

Manufacturer:

ADV

File Size:

264.49 KB

Description:

3 quadrants triacs.
