ADS25D80F

4 Quadrants Triacs

ADS25D80F Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage

ADS25D80F General Description

High current density due to mesa technology .the ADS25D triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25D80F Datasheet (262.34 KB)

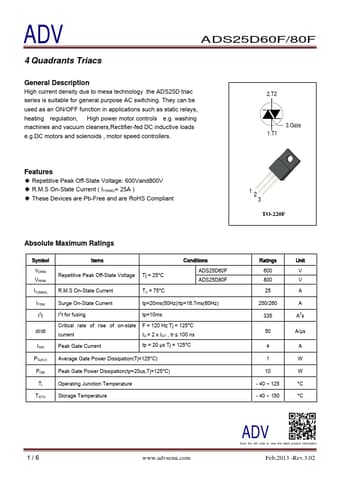

Preview of ADS25D80F PDF

Datasheet Details

Part number:

ADS25D80F

Manufacturer:

ADV

File Size:

262.34 KB

Description:

4 quadrants triacs.
