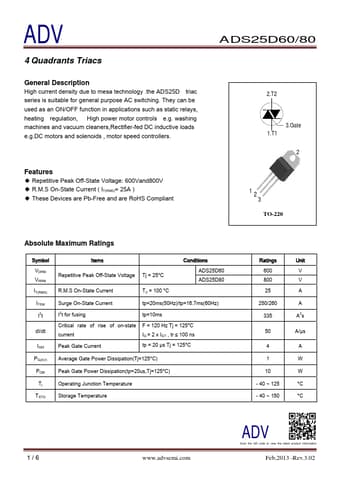

ADS25D60 - 4 Quadrants Triacs

Datasheet Details

High current density due to mesa technology .the ADS25D triac series is suitable for general purpose AC switching..

Repetitive Peak Off-State Voltage: 600Vand800V.
R. M. S On-State Current ( IT(RMS)= 25A ).
These Devices are Pb-Free and are RoHS Compliant ADS25D60/80 2.T2 3.Gate 1.T1 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 100 °C Conditions ADS25D60 ADS25D80 Surge On-State Current tp=20ms(50Hz)/tp=16.7ms(60Hz) I2t for fusing tp=10ms Critic.
