ADS25D80G, ADS25D60G Datasheet - ADV

ADS25D80G 4 Quadrants Triacs

High current density due to mesa technology .the ADS25D triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25D80G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* These Devices are Pb-Free and are RoHS Compliant 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Volta

ADS25D60G-ADV.pdf

This datasheet PDF includes multiple part numbers: ADS25D80G, ADS25D60G. Please refer to the document for exact specifications by model.

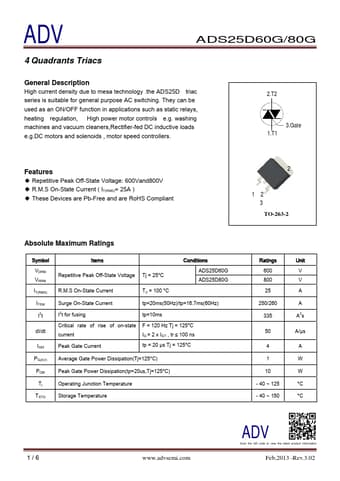

ADS25D80G Datasheet Preview Page 2 ADS25D80G Datasheet Preview Page 3

Datasheet Details

Part number:

ADS25D80G, ADS25D60G

Manufacturer:

ADV

File Size:

265.07 KB

Description:

4 quadrants triacs.

Note:

This datasheet PDF includes multiple part numbers: ADS25D80G, ADS25D60G.
Please refer to the document for exact specifications by model.
