ADS25D80

4 Quadrants Triacs

ADS25D80 Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* These Devices are Pb-Free and are RoHS Compliant       ADS25D60/80 2.T2 3.Gate 1.T1 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items

ADS25D80 General Description

High current density due to mesa technology .the ADS25D triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS25D80 Datasheet (265.54 KB)

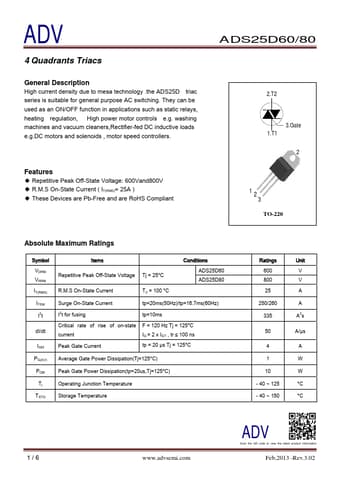

Preview of ADS25D80 PDF

Datasheet Details

Part number:

ADS25D80

Manufacturer:

ADV

File Size:

265.54 KB

Description:

4 quadrants triacs.
