ADS40C120H Datasheet - ADV

ADS40C120H - 3 Quadrants Triacs

High current density due to mesa technology . the ADS40C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC i.

ADS40C120H Features

* Repetitive Peak Off-State Voltage: 1200Vand1600V

* R.M.S On-State Current ( IT(RMS)= 40A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj

ADS40C120H-ADV.pdf

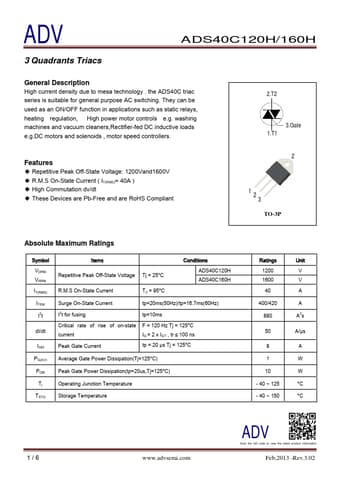

ADS40C120H Datasheet Preview — Preview of ADS40C120H PDF

Datasheet Details

Part number:

ADS40C120H

Manufacturer:

ADV

File Size:

262.93 KB

Description:

3 quadrants triacs.
