ADS40C120X

3 Quadrants Triacs

ADS40C120X Features

* Repetitive Peak Off-State Voltage: 1200Vand1600V

* R.M.S On-State Current ( IT(RMS)= 40A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 2 3 TO-3PX Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM

ADS40C120X General Description

High current density due to mesa technology .the ADS40C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS40C120X Datasheet (266.29 KB)

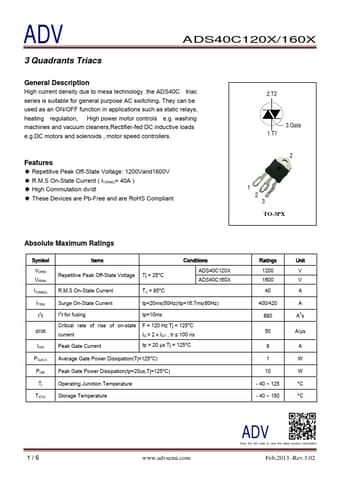

ADS40C120X Datasheet Preview — Preview of ADS40C120X PDF

Datasheet Details

Part number:

ADS40C120X

Manufacturer:

ADV

File Size:

266.29 KB

Description:

3 quadrants triacs.
