ADS40D80H Datasheet, Triacs, ADV

ADS40D80H Features

  • Triacs
  • Repetitive Peak Off-State Voltage: 600Vand800V
  • R.M.S On-State Current ( IT(RMS)= 40A )
  • These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2

PDF File Details

Part number:

ADS40D80H

Manufacturer:

ADV

File Size:

263.57kb

Download:

📄 Datasheet

Description:

4 quadrants triacs. High current density due to mesa technology . the ADS40D triac series is suitable for general purpose AC switching. They can be used

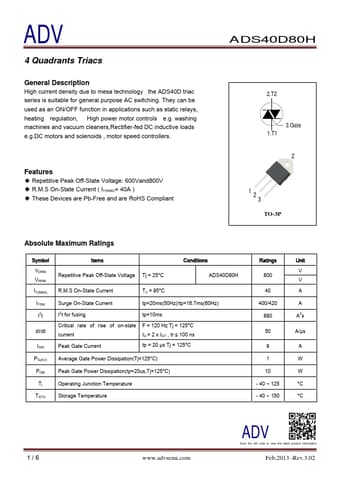

Datasheet Preview: ADS40D80H 📥 Download PDF (263.57kb)
Page 2 of ADS40D80H Page 3 of ADS40D80H

ADS40D80H Application

  • Applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC inducti
