ADS6C80

3 Quadrants Triacs

ADS6C80 Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 6A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj T

ADS6C80 General Description

High current density due to mesa technology .the ADS6C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC ind.

ADS6C80 Datasheet (263.61 KB)

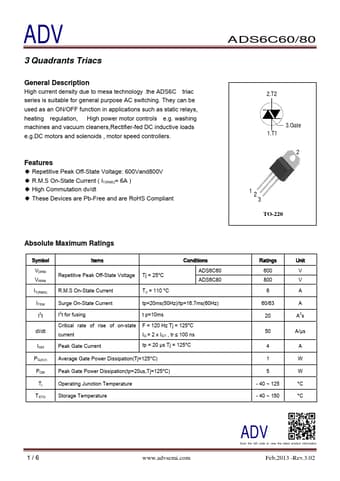

Preview of ADS6C80 PDF

Datasheet Details

Part number:

ADS6C80

Manufacturer:

ADV

File Size:

263.61 KB

Description:

3 quadrants triacs.
