ADS6C80E, ADS6C60E Datasheet - ADV

ADS6C80E - 3 Quadrants Triacs

High current density due to mesa technology .

the ADS6C triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

washing machines and vacuum cleaners,Rectifier-fed DC in

ADS6C80E Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 6A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 12 3 TO-252-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj

ADS6C60E-ADV.pdf

This datasheet PDF includes multiple part numbers: ADS6C80E, ADS6C60E. Please refer to the document for exact specifications by model.

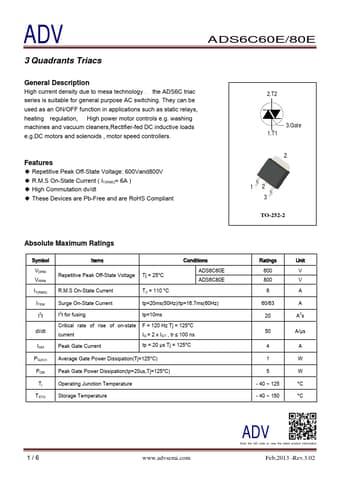

ADS6C80E Datasheet Preview Page 2 ADS6C80E Datasheet Preview Page 3

Datasheet Details

Part number:

ADS6C80E, ADS6C60E

Manufacturer:

ADV

File Size:

274.25 KB

Description:

3 quadrants triacs.

Note:

This datasheet PDF includes multiple part numbers: ADS6C80E, ADS6C60E.
Please refer to the document for exact specifications by model.
