ADS6C80F

3 Quadrants Triacs

ADS6C80F Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 6A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repeti

ADS6C80F General Description

High current density due to mesa technology .the ADS6C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC ind.

ADS6C80F Datasheet (260.54 KB)

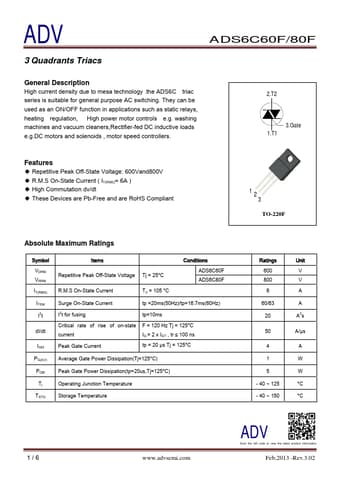

Preview of ADS6C80F PDF

Datasheet Details

Part number:

ADS6C80F

Manufacturer:

ADV

File Size:

260.54 KB

Description:

3 quadrants triacs.
