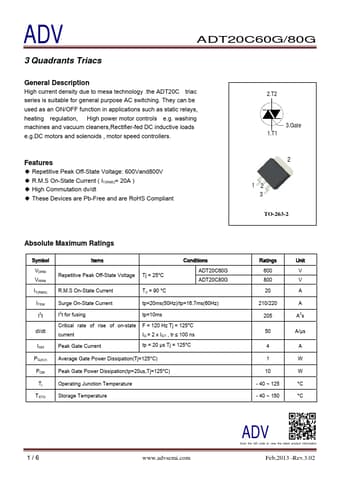

ADT20C60G Datasheet - ADV

ADT20C60G 3 Quadrants Triacs

High current density due to mesa technology .the ADT20C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADT20C60G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 20A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Re
