ADT20C80G

3 Quadrants Triacs

ADT20C80G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 20A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Re

ADT20C80G General Description

High current density due to mesa technology .the ADT20C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADT20C80G Datasheet (263.51 KB)

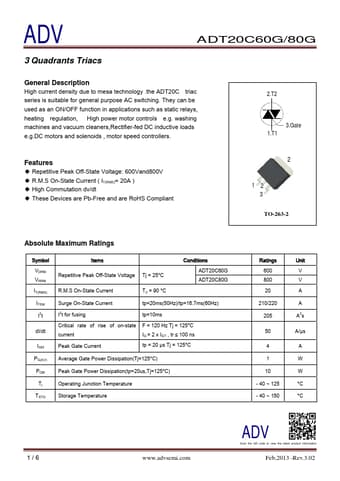

Preview of ADT20C80G PDF

Datasheet Details

Part number:

ADT20C80G

Manufacturer:

ADV

File Size:

263.51 KB

Description:

3 quadrants triacs.
