ADT20C80F, ADT20C60F Datasheet - ADV

ADT20C80F - 3 Quadrants Triacs

High current density due to mesa technology .the ADT20C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADT20C80F Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 20A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repet

ADT20C60F-ADV.pdf

This datasheet PDF includes multiple part numbers: ADT20C80F, ADT20C60F. Please refer to the document for exact specifications by model.

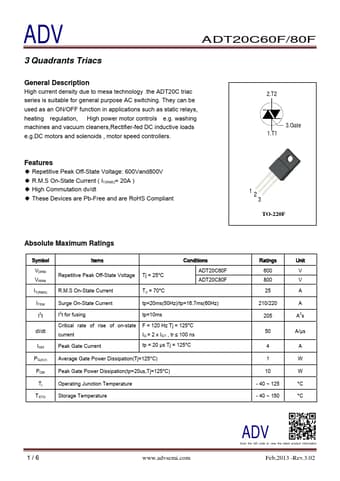

ADT20C80F Datasheet Preview Page 2 ADT20C80F Datasheet Preview Page 3

Datasheet Details

Part number:

ADT20C80F, ADT20C60F

Manufacturer:

ADV

File Size:

259.63 KB

Description:

3 quadrants triacs.

Note:

This datasheet PDF includes multiple part numbers: ADT20C80F, ADT20C60F.
Please refer to the document for exact specifications by model.
