AK4950

24bit Stereo CODEC

AK4950 Features

* 1. Recording Functions

* Stereo Single-ended input with two Selectors

* MIC Amplifier (+24dB/+21dB/+18dB/+16dB/+14dB/+11dB/+8dB/+5dB/0dB)

* Digital ALC (Automatic Level Control) (Setting Range: +35.625dB ∼

* 54dB, 0.375dB Step)

* ADC Performance: S/(N+D): 83dB,

AK4950 General Description

The AK4950 is a 24bit stereo CODEC with a microphone, speaker and headphone amplifiers. The input circuits include a microphone amplifier and the output circuits include a speaker amplifier. It is suitable for portable application with recording/playback function. The integrated charge pump generate.

AK4950 Datasheet (937.54 KB)

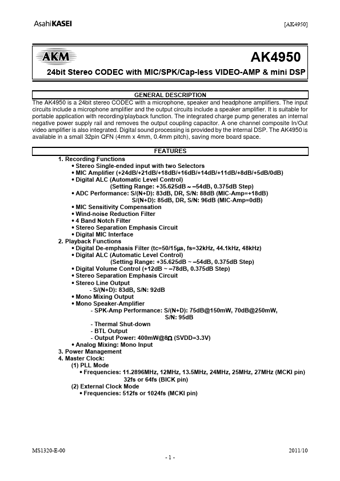

Preview of AK4950 PDF

Datasheet Details

Part number:

AK4950

Manufacturer:

AKM

File Size:

937.54 KB

Description:

24bit stereo codec.
