AK4953A

24bit Stereo CODEC

AK4953A Features

* 1. Recording Function

* Stereo Single-ended input with three Selectors

* MIC Amplifier (+29dB/+26dB/+23dB/+20dB/+16dB/+12dB/0dB)

* Digital ALC (Automatic Level Control) (Setting Ran

AK4953A General Description

The AK4953A is a low power consumption 24bit stereo CODEC with a microphone, headphone and speaker amplifiers. The input circuits include a microphone amplifier and an ALC (Automatic Level Control) circuit, and the output circuits include a cap-less headphone amplifier and a speaker amplifier. It is.

AK4953A Datasheet (1.48 MB)

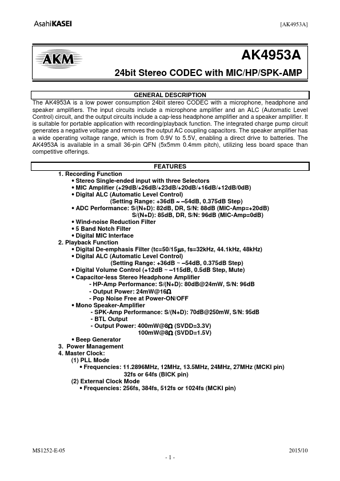

Preview of AK4953A PDF

Datasheet Details

Part number:

AK4953A

Manufacturer:

AKM

File Size:

1.48 MB

Description:

24bit stereo codec.
