AK7754 - Audio DSP

Datasheet Summary

Description

The AK7754 is a highly integrated audio digital signal processor (DSP) with two Audio I/F’s, Microphone and Headphone Amplifier.

The audio DSP has 1536step/fs (at 48KHz sampling) parallel processing power, and AKM’s original Hands-free technology provides high performance noise and echo cancelling.

Features

  • DSP Block - Word length: 24bit (Coefficient RAM & Data RAM: F24 floating point) - Processing Speed: 13.6 ns (1536step/fs fs=48kHz; 9216step/fs fs=8kHz) - Multiplication: 20 x 16 → 36-bit Double precision arithmetic av.

📥 Download Datasheet

Datasheet preview – AK7754

Datasheet Details

Part number AK7754
Manufacturer AKM
File Size 520.45 KB
Description Audio DSP
Datasheet download datasheet AK7754 Datasheet
Additional preview pages of the AK7754 datasheet.

📁 Similar Datasheet

  • AK7712 - Built-in 20-bit ADC/DAC Sophisticated Audio DSP (Asahi Kasei Microsystems)
  • AK7712A-VT - Built-in 20-bit ADC/DAC Sophisticated Audio DSP (Asahi Kasei Microsystems)
  • AK7714 - 20-Bit Audio Codec (Asahi Kasei Microsystems)
  • AK7730A - 24bit 2ch adc (Asahi Kasei Microsystems)
  • AK7740ET - 24bit 2ch ADC + 24bit 4ch DAC (AKM Semiconductor)
  • AK7742 - 24Bit 2ch ADC + 24Bit 4ch DAC (Asahi Kasei Microsystems)
  • AK7744VT - 24bit 3ch ADC + 24bit 4ch DAC (Asahi Kasei Microsystems)
  • AK7746 - Audio DSP (Asahi Kasei Microsystems)
  • AK7 - Ultra-Low Jitter 7.0 x 5.0mm XO (ABRACON)
  • AK75-EC - System Board User Manual (ETC)
Other Datasheets by AKM

Full PDF Text Transcription

Click to expand full text

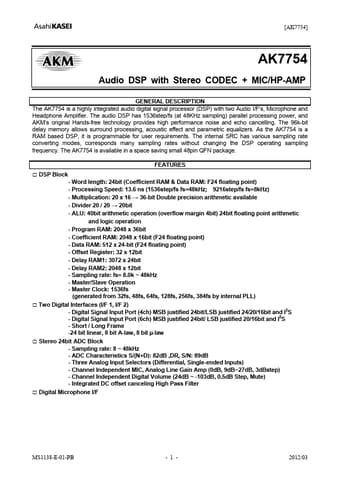

[AK7754] AK7754 Audio DSP with Stereo CODEC + MIC/HP-AMP GENERAL DESCRIPTION The AK7754 is a highly integrated audio digital signal processor (DSP) with two Audio I/F’s, Microphone and Headphone Amplifier. The audio DSP has 1536step/fs (at 48KHz sampling) parallel processing power, and AKM’s original Hands-free technology provides high performance noise and echo cancelling. The 96k-bit delay memory allows surround processing, acoustic effect and parametric equalizers. As the AK7754 is a RAM based DSP, it is programmable for user requirements. The internal SRC has various sampling rate converting modes, corresponds many sampling rates without changing the DSP operating sampling frequency. The AK7754 is available in a space saving small 48pin QFN package.
