AK7757

24bit 3ch ADC +4ch DAC + Mic AmpAudio DSP

AK7757 Features

* † DSP - Word length: 24bits (Da ta RAM: F24floating point) - Processing Speed: 13.6 ns (9216step/fs; fs = 8kH z) - Multiplication: 20 x 20 → 36-bit Double precision arithmet ic available - Divider 20/ 20 → 20-bit - ALU: 40-bit arithmetic operation (ov erflow margin 4bits) 24-bit floatingpoint arith

AK7757 Datasheet (576.25 KB)

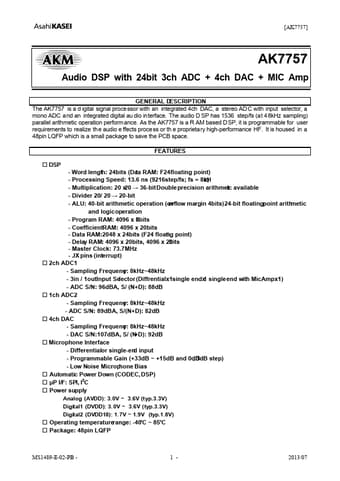

Preview of AK7757 PDF

Datasheet Details

Part number:

AK7757

Manufacturer:

AKM

File Size:

576.25 KB

Description:

24bit 3ch adc +4ch dac + mic ampaudio dsp.
[AK7757] AK7757 Audio DSP with 24bit 3ch ADC + 4ch DAC + MIC Amp GENERAL D ESCRIPTION The AK7757 is a d igital signal processor with an integrated 4c.
