AK7752 - Audio/Hands Free DSP

Datasheet Summary

Description

The AK7752 is a digital signal processor with an integrated stereo CODEC.

The digital signal processor (DSP) can execute a high-quality hands-free algorithm, using only internal memory.

Fine tuning is available for improving voice quality of the hands-free function in actual user environments.

Features

  • [ADC Block].
  • Sampling rate: 8kHz ~ 48kHz.
  • 24-bit stereo.
  • S/(N+D): 86dB.
  • DR, S/N: 89dB (fs=8 kHz), 91dB (fs=48kHz).
  • Integrated DC offset canceling High Pass Filter [DAC Block].
  • Sampling rate: 8kHz ~ 48kHz.
  • 18-bit stereo.
  • S/(N+D): 90dB (fs =8kHz), 88dB (fs=48kHz).
  • DR, S/N: 95dB (fs =8kHz), 95dB.

📥 Download Datasheet

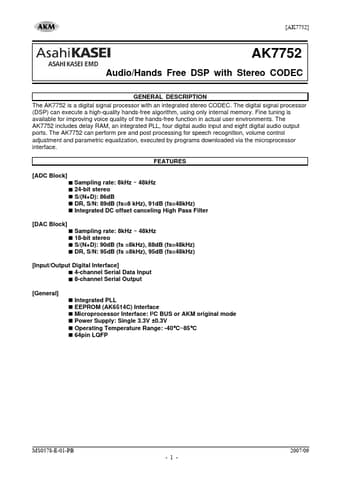

Datasheet preview – AK7752

Datasheet Details

Part number AK7752
Manufacturer AKM
File Size 508.35 KB
Description Audio/Hands Free DSP
Datasheet download datasheet AK7752 Datasheet
Additional preview pages of the AK7752 datasheet.

📁 Similar Datasheet

  • AK7712 - Built-in 20-bit ADC/DAC Sophisticated Audio DSP (Asahi Kasei Microsystems)
  • AK7712A-VT - Built-in 20-bit ADC/DAC Sophisticated Audio DSP (Asahi Kasei Microsystems)
  • AK7714 - 20-Bit Audio Codec (Asahi Kasei Microsystems)
  • AK7730A - 24bit 2ch adc (Asahi Kasei Microsystems)
  • AK7740ET - 24bit 2ch ADC + 24bit 4ch DAC (AKM Semiconductor)
  • AK7742 - 24Bit 2ch ADC + 24Bit 4ch DAC (Asahi Kasei Microsystems)
  • AK7744VT - 24bit 3ch ADC + 24bit 4ch DAC (Asahi Kasei Microsystems)
  • AK7746 - Audio DSP (Asahi Kasei Microsystems)
  • AK7 - Ultra-Low Jitter 7.0 x 5.0mm XO (ABRACON)
  • AK75-EC - System Board User Manual (ETC)
Other Datasheets by AKM

Full PDF Text Transcription

Click to expand full text
[AK7752] AK7752 Audio/Hands Free DSP with Stereo CODEC GENERAL DESCRIPTION The AK7752 is a digital signal processor with an integrated stereo CODEC. The digital signal processor (DSP) can execute a high-quality hands-free algorithm, using only internal memory. Fine tuning is available for improving voice quality of the hands-free function in actual user environments. The AK7752 includes delay RAM, an integrated PLL, four digital audio input and eight digital audio output ports. The AK7752 can perform pre and post processing for speech recognition, volume control adjustment and parametric equalization, executed by programs downloaded via the microprocessor interface.
