PI3012A - 300DPI CIS Sensor Chip

AMI SEMICONDUCTOR

PI3012A Description

www.DataSheet4U.com ™ Peripheral Imaging Corporation PI3012A 300DPI CIS Sensor Chip Engineering Data Sheet .
Peripheral Imaging Corporation PI3012A CIS sensor chip is a 300 dot per inch resolution linear array image sensor chip which utilizes PIC’s proprieta.

PI3012A Applications

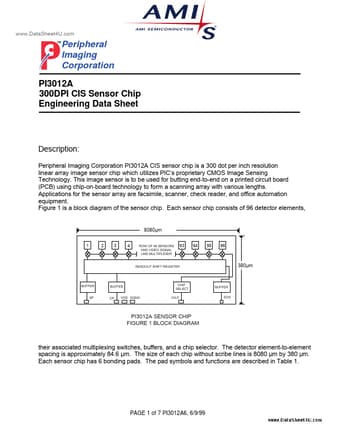

* for the sensor array are facsimile, scanner, check reader, and office automation equipment. Figure 1 is a block diagram of the sensor chip. Each sensor chip consists of 96 detector elements, 8080µm 1 2 3 4 ROW OF 96 SENSORS AND VIDEO SIGNAL LINE MULTIPLEXER 93 94 95 96 READOUT SHIFT REGISTER
