DF424

CMOS Gate Array

DF424 General Description

DF42x is a family of static, master-slave, multiplexed scan D flip-flops. SET and RESET are asynchronous and active low. Outputs are buffered and change state on the rising edge of the clock. Logic Symbol DF42x DS C SD SE R Q Q Truth Table C D RN SD SE SN Q QN ↑HHX LHHL ↑ L HX L H L H ↑ XHHHHH L.

DF424 Datasheet (49.59 KB)

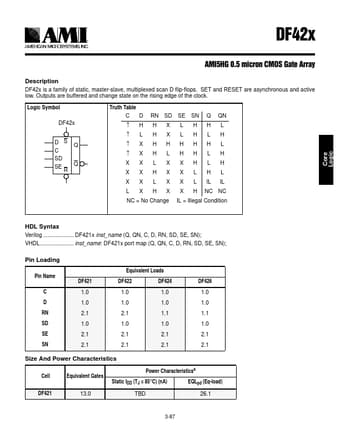

Preview of DF424 PDF

Datasheet Details

Part number:

DF424

Manufacturer:

AMI

File Size:

49.59 KB

Description:

Cmos gate array.
