DF426 CMOS Gate Array

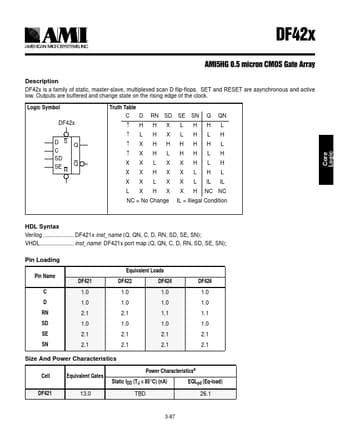

DF42x is a family of static, master-slave, multiplexed scan D flip-flops. SET and RESET are asynchronous and active low. Outputs are buffered and change state on the rising edge of the clock. Logic Symbol DF42x DS C SD SE R Q Q Truth Table C D RN SD SE SN Q QN ↑HHX LHHL ↑ L HX L H L H ↑ XHHHHH L.
