DF4F4 Datasheet - AMI

DF4F4 CMOS Gate Array

DF4Fx is a family of static, master-slave, multiplexed scan D flip-flops without SET or RESET. Outputs are buffered and change state on the rising edge of the clock. Logic Symbol DF4Fx DQ C SD SE Q Truth Table C ↑ ↑ ↑ ↑ L D SD SE Q HX L H LXLL XHHH XLHL X X X NC NC = No Change QN L H L H NC HDL.

DF4F4 Datasheet (39.11 KB)

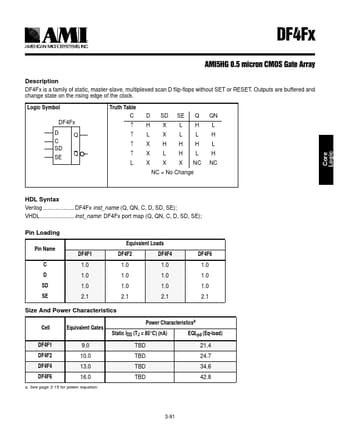

Preview of DF4F4 PDF
DF4F4 Datasheet Preview Page 2 DF4F4 Datasheet Preview Page 3

Datasheet Details

Part number:

DF4F4

Manufacturer:

AMI

File Size:

39.11 KB

Description:

Cmos gate array.
