DF4F6, DF4F1 Datasheet - AMI

DF4F6 - CMOS Gate Array

DF4Fx is a family of static, master-slave, multiplexed scan D flip-flops without SET or RESET.

Outputs are buffered and change state on the rising edge of the clock.

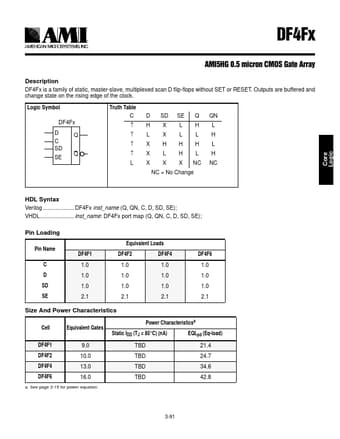

Logic Symbol DF4Fx DQ C SD SE Q Truth Table C ↑ ↑ ↑ ↑ L D SD SE Q HX L H LXLL XHHH XLHL X X X NC NC = No Change QN L H L H NC HDL

DF4F1-AMI.pdf

This datasheet PDF includes multiple part numbers: DF4F6, DF4F1. Please refer to the document for exact specifications by model.
