A43L0616A Datasheet - AMIC Technology

A43L0616A 512K x 16-Bit x 2 Banks Synchronous DRAM

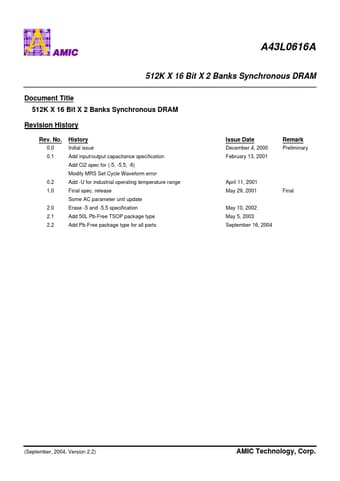

A43L0616A 512K X 16 Bit X 2 Banks Synchronous DRAM Document Title 512K X 16 Bit X 2 Banks Synchronous DRAM Revision History Rev. No. 0.0 0.1 0.2 1.0 2.0 2.1 2.2 History Initial issue Add input/output capacitance specification Add Cl2 spec for (-5, -5.5, -6) Modify MRS Set Cycle Waveform error Add -U for industrial operating temperature range Final spec. release Some AC parameter unit update Erase -5 and -5.5 specification Add 50L Pb-Free TSOP package type Add Pb-Free package type for all pa.

A43L0616A Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Dual banks / Pulse RAS MRS cycle with address key programs - CAS Latency (2,3) - Burst Length (1,2,4,8 & full page) - Burst Type (Sequential & Interleave)

A43L0616A Datasheet (1.24 MB)
