A43L3616 Datasheet - AMIC Technology

A43L3616 2M x 16-Bit x 4 Banks Synchronous DRAM

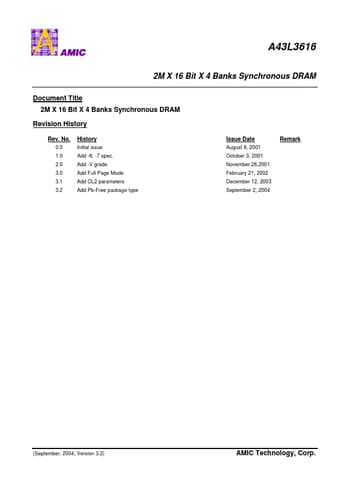

A43L3616 2M X 16 Bit X 4 Banks Synchronous DRAM Document Title 2M X 16 Bit X 4 Banks Synchronous DRAM Revision History Rev. No. 0.0 1.0 2.0 3.0 3.1 3.2 History Initial issue Add -6, -7 spec. Add -V grade Add Full Page Mode Add CL2 parameters Add Pb-Free package type Issue Date August 9, 2001 October 3, 2001 November 26,2001 February 21, 2002 December 12, 2003 September 2, 2004 Remark (September, 2004, Version 3.2) AMIC Technology, Corp. A43L3616 2M X 16 Bit X 4 Banks Synchronous DRAM .

A43L3616 Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks / Pulse RAS MRS cycle with address key programs - CAS Latency (2,3) - Burst Length (1,2,4,8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clock

A43L3616_AMICTechnology.pdf

Preview of A43L3616 PDF
A43L3616 Datasheet Preview Page 2 A43L3616 Datasheet Preview Page 3

Datasheet Details

Part number:

A43L3616

Manufacturer:

AMIC Technology

File Size:

1.04 MB

Description:

2m x 16-bit x 4 banks synchronous dram.
