AWT6201 Datasheet - ANADIGICS

AWT6201 - GSM850/GSM900/DCS/PCS Quad Band PowerPlexer

The AWT6201 is the second generation GSM PowerPlexerTM.

It has been developed to minimize time to market for GSM handset/PDA designers.

DC S _R X DC S /P C S DC S /P C S _IN P C S _R X C NT L_1 C NT L_2 C NT L_3 V B AT T VR E G V R AMP Logic/P ower C ontroller ANT G S M_IN G S M900_R X G S M8

www.DataSheet4U.com AWT6201 GSM850/GSM900/DCS/PCS Quad Band PowerPlexerTM with Integrated Power Control Advanced Product Information - Rev 0.7 The module requires only the most basic RF decoupling, all the RF ports are 50Ω, and interfaces directly with the baseband power control DAC.

The solution includes integrated power control, two dual band power amplifiers to support GSM850/900/DCS/ PCS, harmonic filtering and RX/TX switching.

The power amplifiers support class 12 GPRS, 4 TX slots at 50% d

AWT6201 Features

* ANADIGICS developed technologies (InGaP HBT/pHEMT/IPP) Proven high volume low cost laminate/ overmold technology Integrated Power Control (CMOS) Integrated PA/SW/LPF High Gain InGa

AWT6201_ANADIGICS.pdf

Preview of AWT6201 PDF

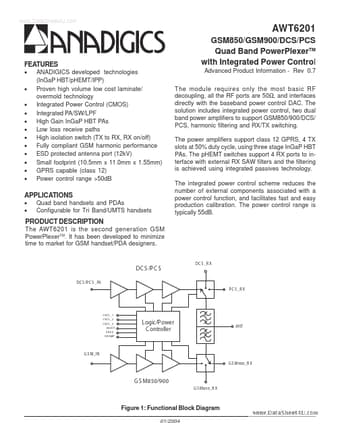

AWT6201 Datasheet Preview Page 2 AWT6201 Datasheet Preview Page 3

Datasheet Details

Part number:

AWT6201

Manufacturer:

ANADIGICS

File Size:

241.69 KB

Description:

Gsm850/gsm900/dcs/pcs quad band powerplexer.
