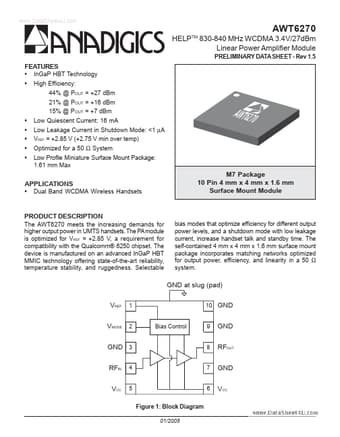

AWT6270 Datasheet, Module, ANADIGICS

AWT6270 Features

• Module
• InGaP HBT Technology High Efficiency: 44% @ POUT = +27 dBm 21% @ POUT = +16 dBm 15% @ POUT = +7 dBm
• Low Quiescent C

PDF File Details

Part number:

AWT6270

Manufacturer:

ANADIGICS

File Size:

310.73kb

Download:

📄 Datasheet

Description:

Linear power amplifier module. The AWT6270 meets the increasing demands for higher output power in UMTS handsets. The PA module is optimized for VREF = +2.85 V, a r

AWT6270 Application

• Applications
• Dual Band WCDMA Wireless Handsets M7 Package 10 Pin 4 mm x 4 mm x 1.6 mm Surface Mount Module PRODUCT DESCRIPTION The AWT62
