AWT6271 Datasheet - ANADIGICS

Linear Power Amplifier Module

AWT6271 Features

* InGaP HBT Technology High Efficiency: 45 % @ POUT = +28 dBm 20 % @ POUT = +16 dBm 15 % @ POUT = +7 dBm

* Low Quiescent Current: 16 mA Low Leakage Current in Shutdown Mode:

AWT6271 General Description

The AWT6271 meets the increasing demands for higher output power in UMTS handsets. The PA module is optimized for VREF = +2.85 V, a requirement for compatibility with the Qualcomm® 6250 chipset. The device is manufactured on an advanced InGaP HBT GND at slug (pad) VREF 1 10 GND GND RFOUT GND VCC .

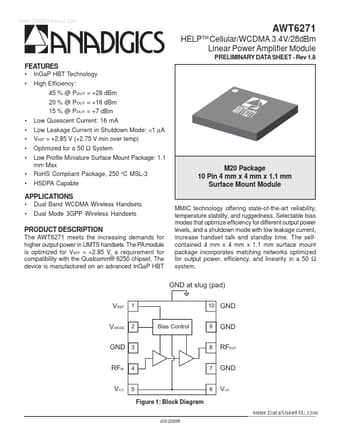

AWT6271 Datasheet (254.27 KB)

AWT6271 Datasheet Preview — Preview of AWT6271 PDF

Datasheet Details

Part number:

AWT6271

Manufacturer:

ANADIGICS

File Size:

254.27 KB

Description:

Linear power amplifier module.
