AWT6273 - HELP3 Cellular/WCDMA 3.4 V/29 dBm Linear Power Amplifier Module

AWT6273 Description

HELP3TM Cellular/WCDMA 3.4 V/29 dBm Linear Power Amplifier Module Data Sheet - Rev 2.1 AWT6273 .
that optimize efficiency for different output power levels, and a shutdown mode with low leakage current, increase handset talk and standby time.

AWT6273 Features

* InGaP HBT Technology
* High Efficiency: 43 % @ POUT = +29 dBm 20 % @ POUT = +16 dBm 8 % @ POUT = +8 dBm
* Low Quiescent Current: 7 mA www. DataSheet4U. com
* Low Leakage Current in Shutdown Mode:

AWT6273 Applications

* Dual Band WCDMA Wireless Handsets
* Dual Mode 3GPP Wireless Handsets The AWT6273 HELP3TM PA is the 3rd generation WCDMA product for UMTS handsets. This PA incorporates ANADIGICS’ HELP3TM technology to provide low power consumption without the need for an external voltage regulat

📥 Download Datasheet

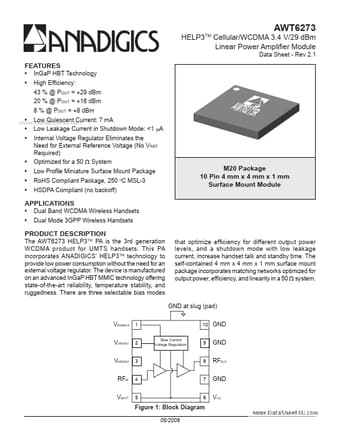

Preview of AWT6273 PDF
