AWT6275

Linear Power Amplifier Module

AWT6275 Features

* InGaP HBT Technology High Efficiency: 43% @ POUT = +27.5 dBm 21% @ POUT = +16 dBm 15% @ POUT = +7 dBm

* Low Quiescent Current: 16 mA Low Leakage Current in Shutdown Mode:

AWT6275 General Description

The AWT6275 meets the increasing demands for higher output power in UMTS handsets. The PA module is optimized for VREF = +2.85 V, a requirement for compatibility with the Qualcomm® 6250 chipset. The device is manufactured on an advanced InGaP HBT MMIC technology offering state-of-the-art reliability.

AWT6275 Datasheet (315.72 KB)

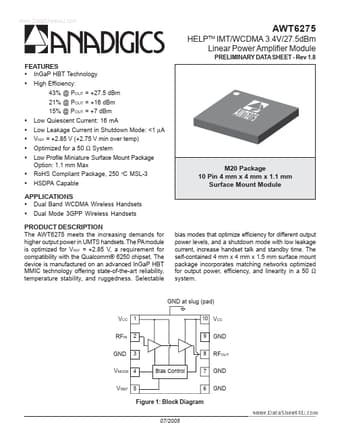

Preview of AWT6275 PDF

Datasheet Details

Part number:

AWT6275

Manufacturer:

ANADIGICS

File Size:

315.72 KB

Description:

Linear power amplifier module.
