AWT6272R - Linear Power Amplifier Module

AWT6272R Description

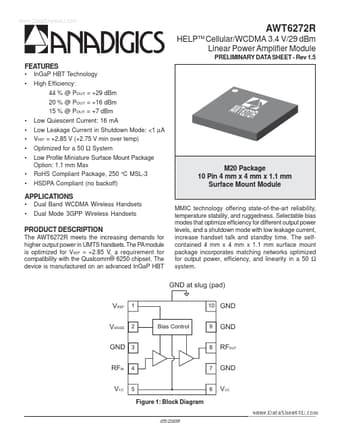

www.DataSheet4U.com AWT6272R HELP Cellular/WCDMA 3.4 V/29 dBm Linear Power Amplifier Module PRELIMINARY DATA SHEET - Rev 1.5 TM .
The AWT6272R meets the increasing demands for higher output power in UMTS handsets.

AWT6272R Features

* InGaP HBT Technology High Efficiency: 44 % @ POUT = +29 dBm 20 % @ POUT = +16 dBm 15 % @ POUT = +7 dBm
* Low Quiescent Current: 16 mA Low Leakage Current in Shutdown Mode:

AWT6272R Applications

* Dual Band WCDMA Wireless Handsets Dual Mode 3GPP Wireless Handsets MMIC technology offering state-of-the-art reliability, temperature stability, and ruggedness. Selectable bias modes that optimize efficiency for different output power levels, and a shutdown mode with low leakage
