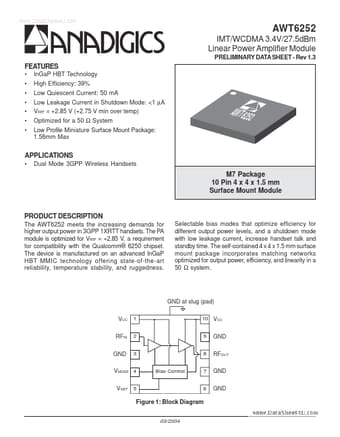

AWT6252 Datasheet, Module, ANADIGICS

AWT6252 Features

• Module
• InGaP HBT Technology High Efficiency: 39% Low Quiescent Current: 50 mA Low Leakage Current in Shutdown Mode: <1 µA

PDF File Details

Part number:

AWT6252

Manufacturer:

ANADIGICS

File Size:

188.44kb

Download:

📄 Datasheet

Description:

Linear power amplifier module. The AWT6252 meets the increasing demands for higher output power in 3GPP 1XRTT handsets. The PA module is optimized for VREF = +2.85

AWT6252 Application

• Applications
• Dual Mode 3GPP Wireless Handsets M7 Package 10 Pin 4 x 4 x 1.5 mm Surface Mount Module PRODUCT DESCRIPTION The AWT6252 meet
