APL3534 1A Power-Distribution Switches

APL3534 Description

APL3534/A/B Compact, Small Package 1A Power-Distribution Switches .
High Side N-MOSFET with Internal Charge Pump. 1A Continuous Current. Built-in Soft-Start. Wide Supply Voltage Ra.

APL3534 Applications

* HDMI Port Protection Switches
* Bluetooth Protection Switches
* High-side Power Protection Switches The APL3534/A/B is a power-distribution switch with current- limiting function and output OVP protections that can deliver current up to 1A. The device incorporates a 110mΩ

📥 Download Datasheet

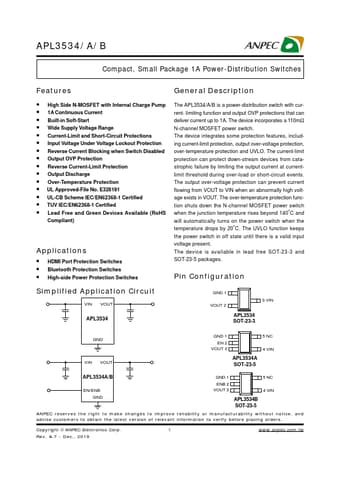

Preview of APL3534 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3534
Manufacturer
ANPEC
File Size
496.29 KB
Datasheet
APL3534_ANPEC.pdf
Description
1A Power-Distribution Switches
