APL3536 6A Load Switch

The APL3536/B is an ultra-low on-resistance, power-distribution switch with external soft start control. It integrates a N-channel MOSFET that can deliver 6A continuous load current each. The device integrates over-temperature protection. The over temperature protection function shuts down the Nchan.

APL3536 Features

* 15mΩ (Typical) On-resistance 6A Continuous Current Soft Start Time Programmable by External Capacitor Wide Input Voltage Range (VIN): 0.8V to 5.5V Supply Voltage Range (VBIAS): 3V to 5.5V Output Disch

APL3536-ANPEC.pdf

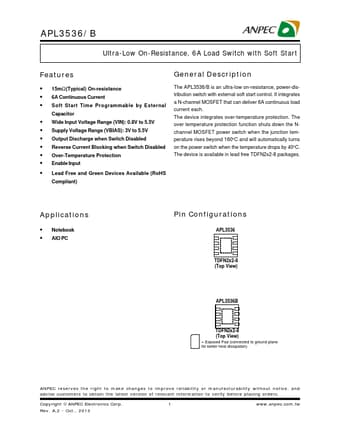

Preview of APL3536 PDF
APL3536 Datasheet Preview Page 2 APL3536 Datasheet Preview Page 3

Datasheet Details

Part number:

APL3536

Manufacturer:

ANPEC

File Size:

198.29 KB

Description:

6a load switch.
