APL3580 3A High Side Load Switche

APL3580 Description

APL3580 33mΩ 3A High Side Load Switches .
The APL3580 series are 33mΩ high-side load switches designed to be operated from 1.

APL3580 Features

* 33mΩ High Side MOSFET 3A Continuous Current Wide Supply Voltage Range: 1.5V to 5.5V Internal Level Shift for CMOS/TTL Control Logic Ultra Low Quiescent Current Micro-power Shutdown Current Soft-Start

APL3580 Applications

* They are available in tiny 1.2mmx1.2mm WLCSP-4 packages. Applications
* Mobile Phones Personal Media Players Portable Instrumentation PDAs Ultra Mobile PCs Other Portable Applications Simplified Application Circuit APL3580 VIN VOUT Pin Co

📥 Download Datasheet

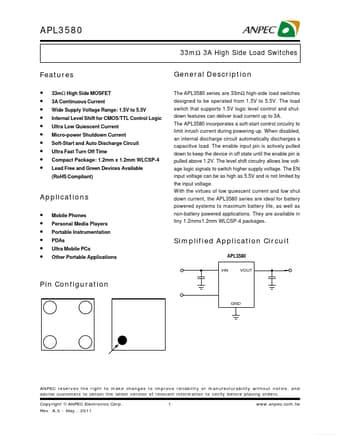

Preview of APL3580 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3580
Manufacturer
ANPEC
File Size
239.90 KB
Datasheet
APL3580_ANPEC.pdf
Description
3A High Side Load Switche
