APL5601 (APL5601 / APL5602) Low Dropout 600mA Fixed Voltage Linear Regulator

APL5601 Description

APL5601/5602 Low Dropout 600mA Fixed Voltage Linear Regulator .
The APL5601/5602 family of low-power and low dropout linear regulators which operate from 2.

APL5601 Features

* Low Dropout Voltage: 220mV (Typical) @600mA Wide Input Voltage from 2.9V~6V Low Quiescent Current: 140µA Output Voltage Range : 1~5V Fixed Output Voltage with 2% Accuracy Stable wi

APL5601 Applications

* VIN APL5601/5602 VIN CIN 1µF GND VOUT COUT 2.2µF VOUT
* CD/DVD-ROM, CD-R/W Networking System, LAN Card, ADSL/Cable Modem Set-Top Box PC Peripherals Battery-Powered System Pin Configuration APL5601 GND 1 VIN 2 VOUT 3 VIN (Tab) GND 1 VIN 2 VOUT 3 A

📥 Download Datasheet

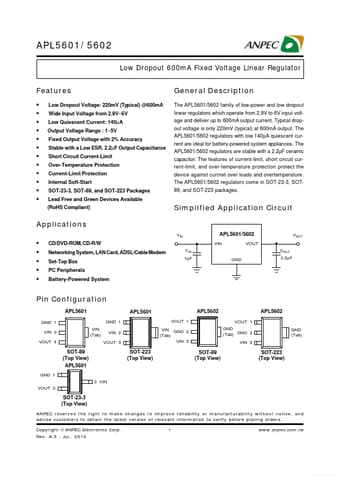

Preview of APL5601 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL5601
Manufacturer
ANPEC
File Size
344.49 KB
Datasheet
APL5601-ANPEC.pdf
Description
(APL5601 / APL5602) Low Dropout 600mA Fixed Voltage Linear Regulator
