APL5603

Low Dropout 600mA Fixed Voltage Linear Regulator

APL5603 Features

* General Description

* Low Dropout Voltage: 220mV (Typical) @600mA

* Wide 2.9V~6V Input Voltage

* Low Quiescent Current: 140µA (Typical)

* Fixed Output Voltage with ±2% Accuracy

* Stable with Ceramic, 2.2µF Output Capacitor

* Short-Circuit Current-Lim

APL5603 General Description



* Low Dropout Voltage: 220mV (Typical) @600mA

* Wide 2.9V~6V Input Voltage

* Low Quiescent Current: 140µA (Typical)

* Fixed Output Voltage with ±2% Accuracy

* Stable with Ceramic, 2.2µF Output Capacitor

* Short-Circuit Current-Limit

* Over-Tem.

APL5603 Datasheet (360.66 KB)

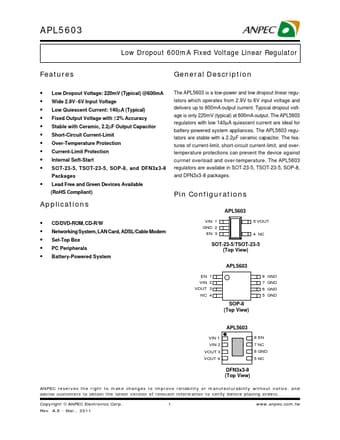

Preview of APL5603 PDF

Datasheet Details

Part number:

APL5603

Manufacturer:

ANPEC

File Size:

360.66 KB

Description:

Low dropout 600ma fixed voltage linear regulator.
